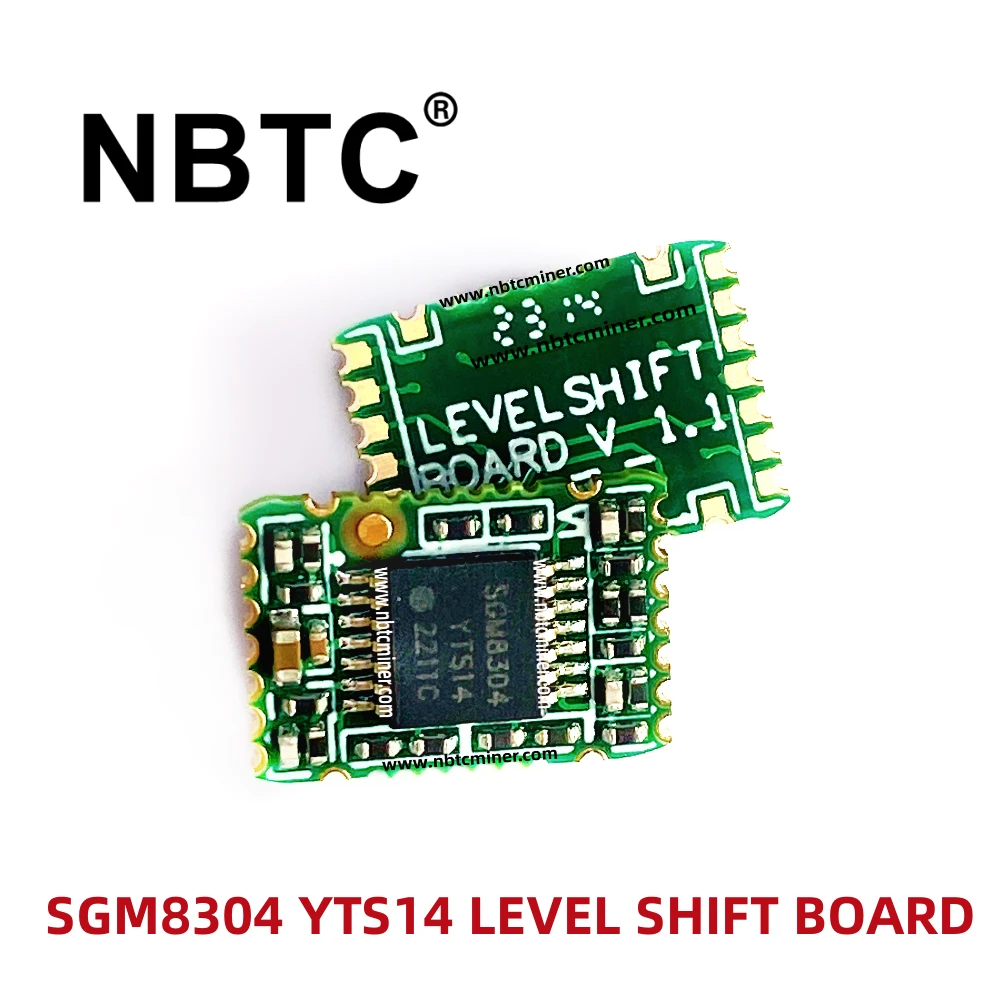

Original SGM8304 YTS14 Level Shift Board power module with SGM8304YTS14 High Speed Operational Amplifier IC Chip FOR Antminer S19 XP

SGM8304/YTS14 LEVEL SHIFT BOARD power module on S19 XP hash board U168,U169,U170,U171,U172,U173,U174,U175,U176,U177

Upgrade your Antminer with the SGM8304 operational amplifier module and increase mining efficiency. With its high-gain and frequency-compensated design, this amplifier module is the perfect replacement for the SGM8304 computing chip on the S19 S19XP hash board. It is designed to operate on a single power supply while providing a wide voltage range, making installation easy and hassle-free. By amplifying your signal’s voltage, you’ll experience improved mining performance in no time.

SGM8304 YTS14:

The SGM8301 (single), SGM8302 (dual) and SGM8304 (quad) are unity gain stable devices that combine high speed performance and rail-to-rail outputs. These devices are targeted for applications where an input or an output is exposed to the outside world, such as video and communications.

These devices can operate from ±2.25V to ±6V dual power supplies or from +4.5V to +12V single supplies. The common mode input voltage range extends to the negative power-supply rail (ground in single-supply applications).

The SGM8301/2/4 consume only 8.5mA of quiescent supply current per amplifier while achieving a 100MHz -3dB bandwidth, 56MHz small signal bandwidth for -0.1dB gain flatness, and a 155V/µs slew rate.

The SGM8301 single is available in Green SOT-23-5, MSOP-8 and SOIC-8 packages. The SGM8302 dual is available in Green SOIC-8 and MSOP-8 packages. The SGM8304 quad is available in Green SOIC-14 and TSSOP-14 packages. The SGM8301/2/4 are specified over the extended -40℃ to +85℃ temperature range.

*Features

 +4.5V to +12V Single Supplies or ±2.25V to ±6V Dual Power Supplies
 High Speed
-100MHz -3dB Bandwidth
-56MHz -0.1dB Gain Flatness
-155V/µs Slew Rate
 Rail-to-Rail Output
 Low Differential Gain/Phase: 0.02%/0.02°
 High Output Drive: 103mA
 -40℃ to +85℃ Operating Temperature Range

*Applications

Video Line Driver
Video-on-Demand
Set-Top Boxes
Surveillance Video Systems
Analog-to-Digital Converter Interface
CCD Imaging Systems
Digital Cameras
