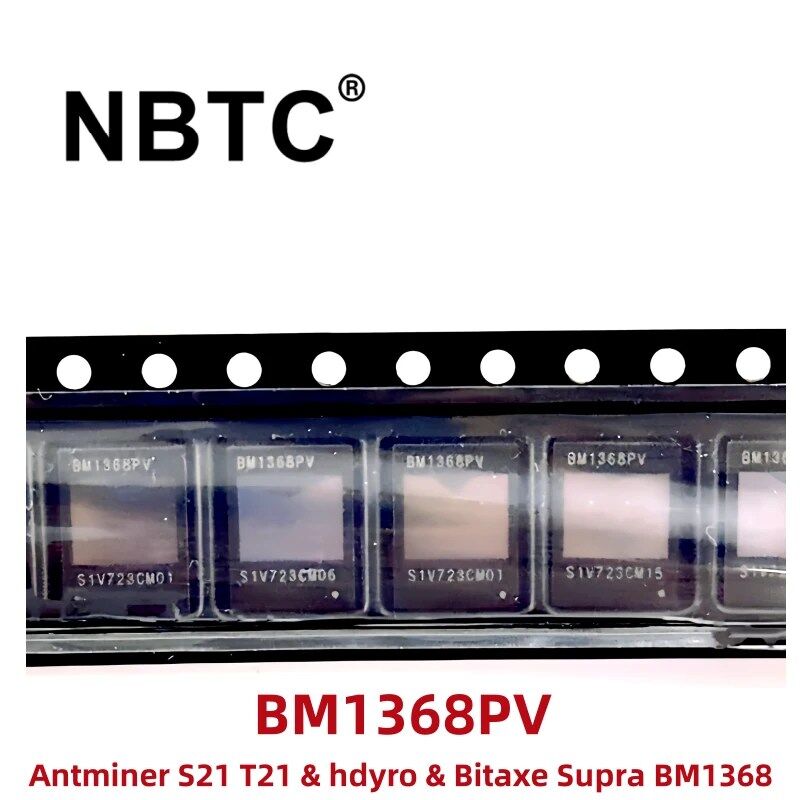

New Original BM1368 BM1368PV for Bitaxe Supra BM1368

Bitaxe is a fully open-source hardware Bitcoin ASIC miner. Ultra is the 3rd major revision of the Bitaxe that includes the BM1366 ASIC chip from Antminer S19XP. Supra is the 4th revision that includes a BM1368 ASIC Chip from Antminer S21. A 5V DC power supply with 2.1/5.5mm barrel jack connector is included with Bitaxe. US to EU plug adapter included with all overseas orders.

Powered by the AxeOS, an open-source firmware that gives you full control over your mining. Change settings and monitor performance on a modern web-interface.

Goals:
Standalone: can mine directly to your pool over WiFi. No External computer needed.
Embedded: low cost, low maintenance, high availability, high reliability, low power.
ASIC: based on the very efficient BM1366/BM1368 from Bitmain.
Versatile: solo/pool mining, autotune power/heat/efficiency.
Features
ESP32-S3-WROOM-1 Wi-Fi microcontroller on board
TI TPS40305 buck regulator steps down the 5V input to power the BM1366/BM1368
Maxim DS4432U+ current DAC digitally adjusts the BM1366/BM1368 core voltage from 0.04V to 2.4V
TI INA260 power meter measures the input voltage and current of the miner
Microchip EMC2101 PWM controls the fan and monitors tach output. Measuring internal die temp isn’t working.
0.91″ SSD1306 OLED I2C Display Module

Notes
Beware that overclocking doesn’t produce a higher hash rate on this board, it only causes more heat generation.

If you decide to build a pre-release board, be sure to order 2 oz. copper on both the internal and external layers.

The recommended heatsink is not anodized and very conductive on all surfaces. This should be OK as the ASIC tops are not known to be conductive, but this needs some more investigation.
