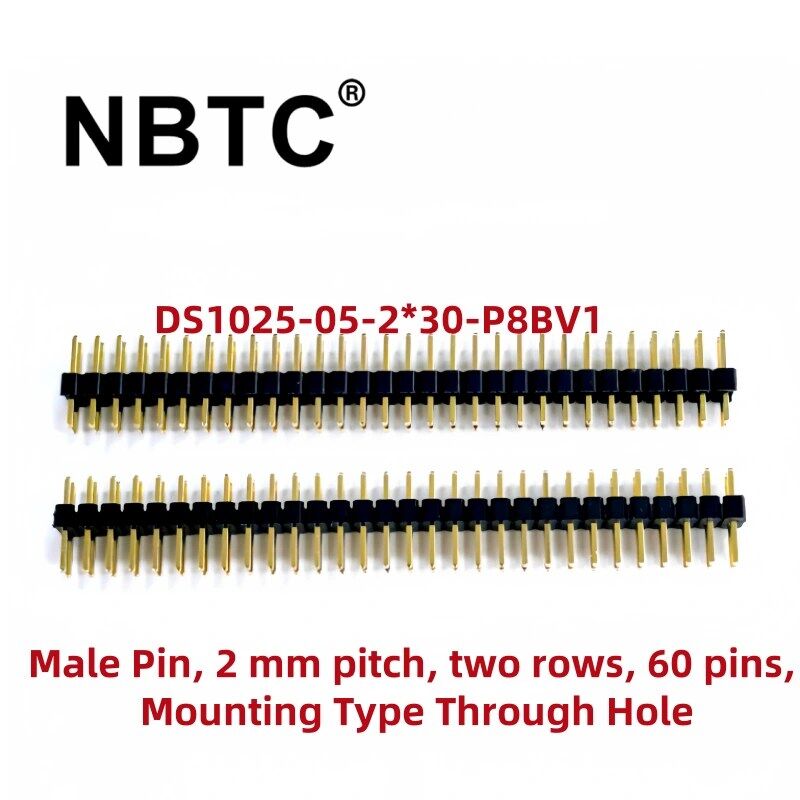

Original New DS1025-05 Series DS1025-05-2*30-P8BV1 DS1025-05-2X30-P8BV1 DS1025-05-2X30P8BV1 Connector with Male Pin 2mm pitch two rows 60pins
| Product series: | DS1025-05 |
| Pitch: | 2.00mm |
| Product description: | Pin Header Type |
| Pin number range: | 2*30 |
| Product type: | Board to Board |
| Welding temperature: | 250±5℃ |
| Rated current: | 2A Max |
| Rated voltage: | 250V AC/DC |
| Contact impedance: | 20mΩ Max |
| Insulation impedance: | 1000MΩ Min |
| Withstand voltage: | 500V AC 1 minute |
| Plug life: | / |
| Operating temperature: | -40~+105℃ |
In addition, We also provide BOM Service! Like :
| DFE252010P-1R0M=P2: | Inductor Power Shielded Wirewound 1uH 20% 1MHz Metal 2.7A 0.054Ohm DCR 1008 T/R |
| DG300-5.0-02P-12-00A(H): | Screw terminal block, 2-pin, 5mm, straight |
| Diode 1N4007: | |
| DL20006-A (PHB-A): | Mail 2×30 Connector-60 pin-S-M |
| DLW5ATN500MQ2L: | Common Mode Filters / Chokes 6000mA 5.0×3.6mm DCR0.009ohm+/- 40% |
| Double nickel strip: | |
| DS1025-05-2X30-P8BV1: | Male Pin, 2 mm pitch, two rows, 60 pins, Mounting Type Through Hole |
| DS1026-05-2×30-S8BV: | Connector |
| DS1037-09MNAKT74-0CC: | Receptacle Assembly, 9 Position, Right Angle |
