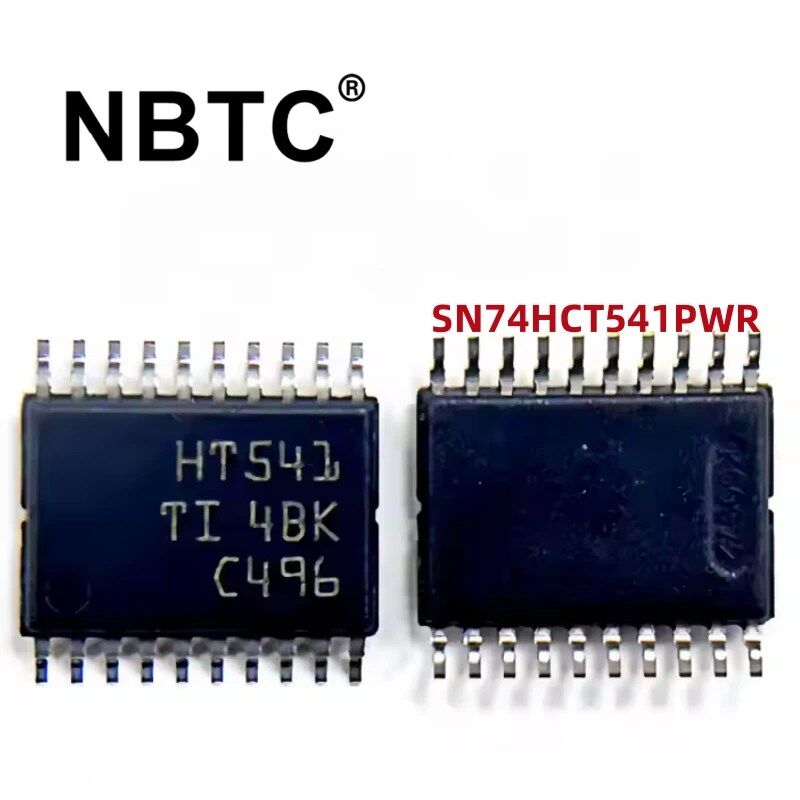

New Original SN74HCT541PWR marking HT541 8-Channel Buffer/Driver IC 4.5V-5.5V CMOS Logic with Tri-State Output for Industrial Control Systems
—Buffer, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-TSSOP
Product Description
SN74HCT541PWR is a high-performance 8-channel buffer/driver, using CMOS process and 20-TSSOP package, designed for electronic systems that require high-reliability signal buffering and driving functions. Its tri-state output feature supports bus sharing and is widely used in industrial control, automotive electronics, and communication equipment.
| Series | 74HCT |
| Logic Type | Buffer,Non-Inverting |
| Number of Elements | 1 |
| Number of Bitsper Elements | 8 |
| Input Type | – |
| Output Type | 3-State |
| Current-Output High, Low | 6mA,6mA |
| Voltage-Supply | 4.5V~5.5V |
| Operating Temperature | * |
| Mounting Type | SurfaceMount |
| Package/Case | 20-TSSOP(0.173″,4.40mmWidth) |
| Package | 20-TSSOP |
| Base Product Number | 74HCT541 |
Features
1. High reliability design: using CMOS process, high stability, suitable for harsh industrial environments.
2. Tri-state output control: control the output state through the enable pin (OE), which is convenient for multiple devices to share the bus.
3. Wide voltage compatibility: support 4.5V~5.5V power supply, adapt to different system requirements.
4. Low power consumption: The static current is only 8μA, which is suitable for low-power application scenarios.
5. Space optimization: The 20-TSSOP package is small in size (6.5mm×4.4mm), which is convenient for dense layout.
Applications
1. Industrial control systems: such as PLC, sensor interface, data acquisition system.
2. Automotive electronics: in-vehicle entertainment system, body electronic control unit.
3. Communication equipment: routers, switches, wireless base stations.
4. Computer peripherals: printers, monitors, USB hubs
