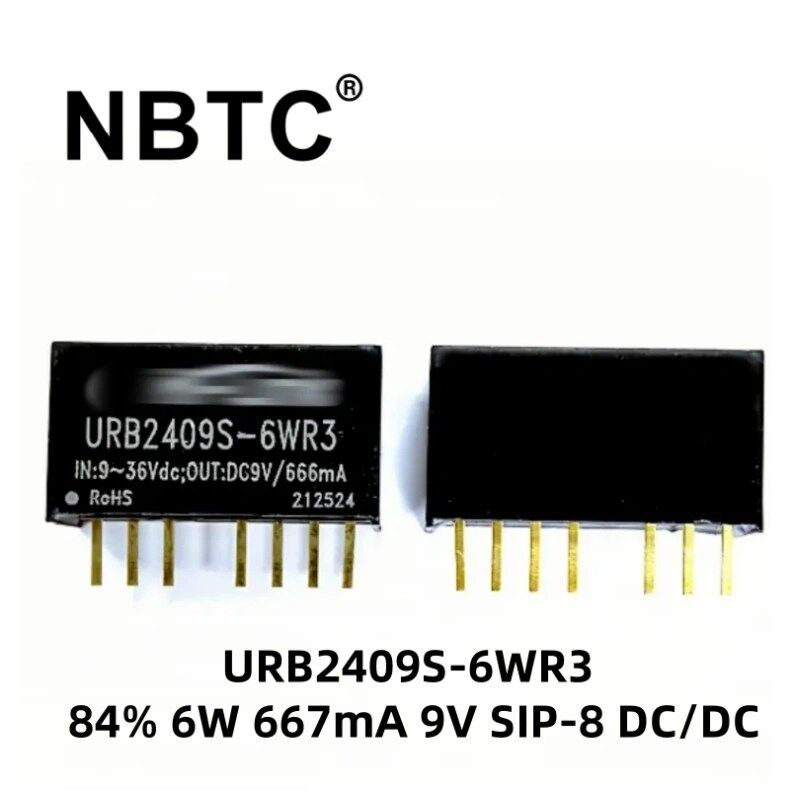

URB2409S-6WR3 6W Isolated Module DC DC Converter 1 Output 9V – – – 667mA 9V – 36V Input
6W, ultra-wide voltage input, isolated regulated positive and negative dual/single output, DC/DC module power supply
URB2409S-6WR3 is an isolated 6W DC-DC product with 4:1 input and normal voltage output. This product is a small SIP-8 plastic pin package with high efficiency, meets the operating temperature of –40℃ to +85℃, and has remote control and sustainable short-circuit protection functions. The small size and excellent cost design make this converter an ideal solution for communication equipment, instrumentation and industrial electronic applications.
| ⚫ Ultra-small SIP8 package | |||||
| ⚫ Ultra-wide input voltage range: 4:1 | |||||
| ⚫ Operating temperature range: -40℃ to +85℃ | |||||
| ⚫ Isolation voltage 1500VDC | |||||
| ⚫ Low ripple noise | |||||
| ⚫ Short circuit protection (self-recovery) | |||||
| ⚫ No-load power consumption as low as 0.12W | |||||
| ⚫ Input undervoltage protection, output short circuit, overcurrent protection | |||||
| Product number | Product number | Input voltage | output voltage | output current | Power |
| URB2403S-6WR3 | HLK-URB2403S-6WR3 | 24V(9~36V) | 3.3V | 1350mA | 6W |
| URB2405S-6WR3 | HLK-URB2405S-6WR3 | 24V(9~36V) | 5V | 1200mA | 6W |
| URB2409S-6WR3 | HLK-URB2409S-6WR3 | 24V(9~36V) | 9V | 667mA | 6W |
| URB2412S-6WR3 | HLK-URB2412S-6WR3 | 24V(9~36V) | 12V | 500mA | 6W |
| URB2415S-6WR3 | HLK-URB2415S-6WR3 | 24V(9~36V) | 15V | 400mA | 6W |
| URB2424S-6WR3 | HLK-URB2424S-6WR3 | 24V(9~36V) | 24V | 250mA | 6W |
