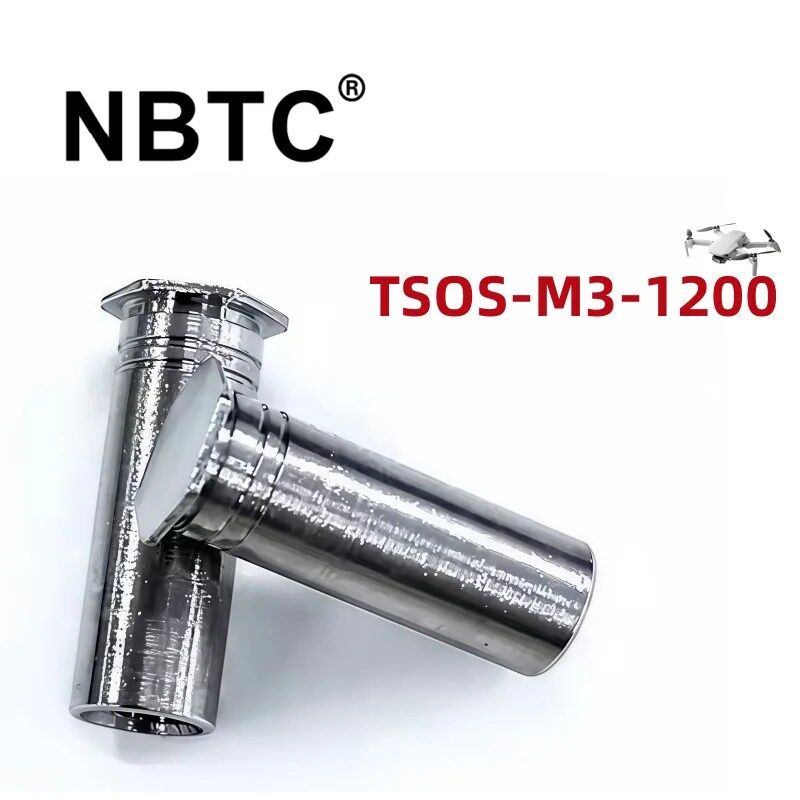

TSOS-M3-1200 TSOS M3 1200 Threaded Bracket
TSOS-M3-1200:
1. Threaded Standoffs for Sheets as Thin as 0.63mm – Types TSO, TSOA, TSOS
2. These standoffs, which use the proven self-clinching design, install with a squeeze in properly sized round holes – and become permanently mounted in the thin sheet.
3. Types TSO, TSOS, and TSOA self-clinching threaded standoffs provide permanent threads in sheets as thin as 0.63 mm.
If you require a standoff which we do not offer in this bulletin, please contact us. We will be happy to work with you to satisfy your special need.
| Thread Code | M3 |
| Thread Size X Pitch | M3 x 0.5 |
| Thread Specification | ANSI/ASME B1.13M, Internal |
| For Use in Sheet Hardness | HRB 70 / HB 125 or Less |
| Length Code | 1200 |
| Style | #3 |
| Product Category | Threaded Standoffs for Sheets as Thin as 0.63mm – Types TSO, TSOA, TSOS |
| Thread Type | PEM standoffs: Thin sheet, thru-hole |
| Application Type | Aerospace, Automotive, Automotive Electronics, Commercial Vehicles, Datacom, Electric Vehicle Chargers, Electric Vehicles, Electronics, Industrial, Manufacturing & Sheet Metal Fabrication, Marine, Medical, Renewable Energy, Telecom |
| Base Panel Material | Aluminum, Steel |
| Brand | PEM |
| Fastener Characteristics | Threaded Internal |
| Industry | Automotive Electronics, Datacom & Telecom, Electic Vehicles, Industrial & Commercial, Medical |
| Installation Equipment/Method | C-Frame Automatic Feed, C-Frame Manual Feed |
| L Len Pm 003in Or 08mm | 12mm |
| Product Type | Standoffs |
| Technology Type | Self-Clinching |
| C – 0.13_mm | 4.2mm |
| H – Nom._mm | 4.8mm |
| Hole Size in Sheet + 0.08_mm | 4.22mm |
| L +0.05 -0.13_mm | 12mm |
