New Original TS8029N TS8029 Single Pole Dual Throw RF Switch IC 5GHZ 100W 630WP for Cellular Infrastructure

Product Description
The TS8029N is an asymmetrical reflective Single Pole Dual Throw (SPDT) switch designed for broadband, high power switching applications. With a simple broadband match, the TS8029N can cover 700MHz to 5.0GHz bandwidth and provide low insertion loss, high isolation and high linearity within a small package size. TS8029N is an excellent switch for all applications requiring low insertion loss, high isolation and high linearity within a small package size.

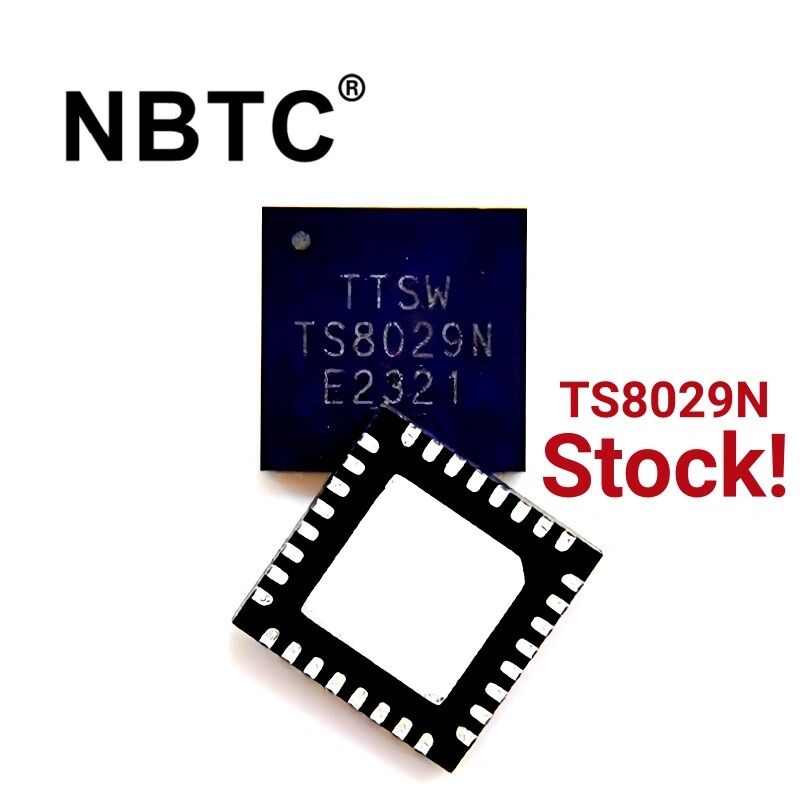

The TS8029N is packaged into a compact Quad Flat No lead
(QFN) 5x5mm2 32 leads plastic package.

Product Features
● Low TX insertion loss: 0.20dB @ 800MHz
● High isolation: 51dB @ 800MHz
● 631W Peak Power Handling
● Versatile 2.6-5.5V power supply
● Operating frequency: 700MHz to 5.0GHz

Product Applications
● Cellular infrastructure
● Small cells
● Macrocells
● ADS-B, IFF Systems
