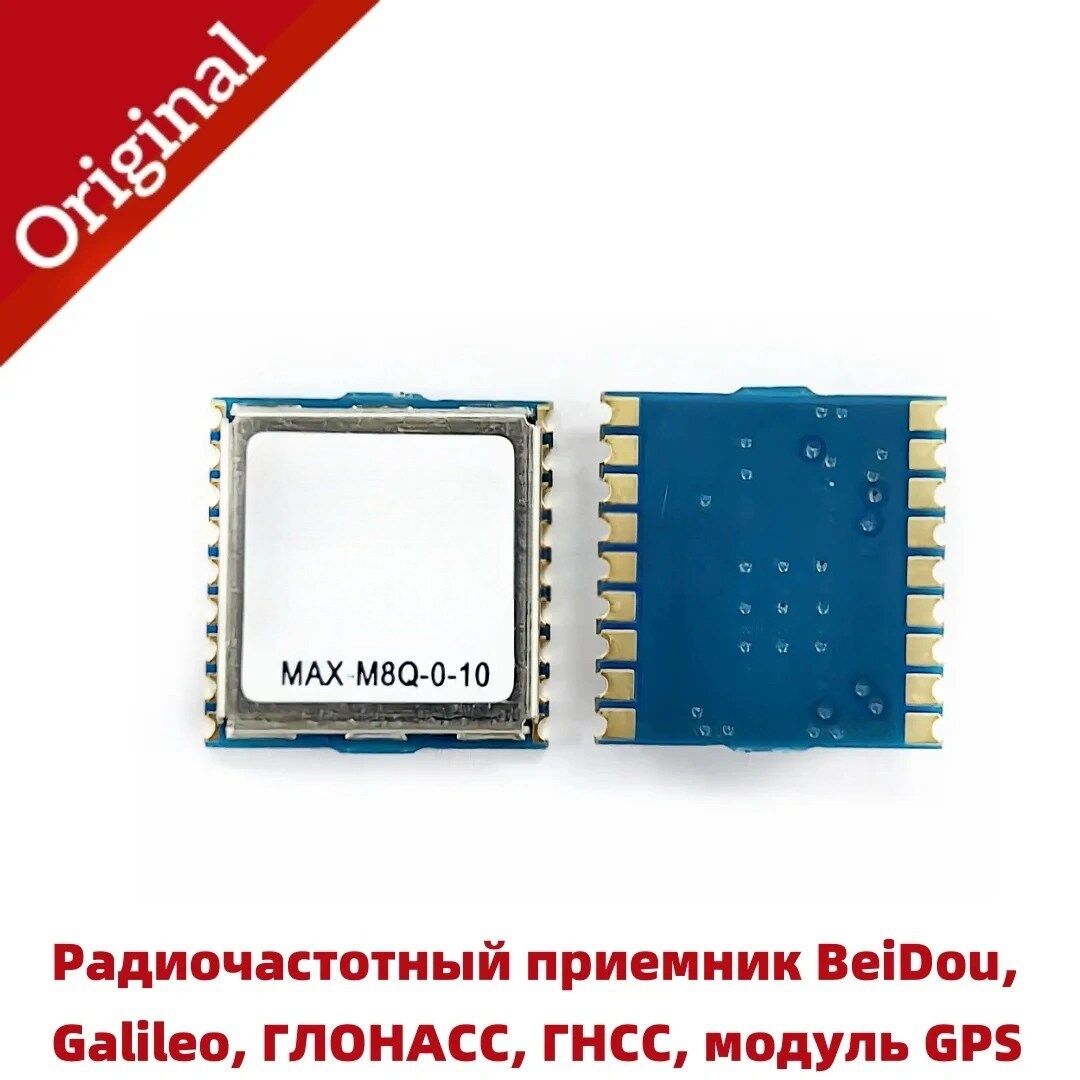

New Original MAX-M8Q-0-10 MAX-M8 RF Receiver module BeiDou, Galileo, GLONASS, GNSS, GPS Module

Click on the Whatsapp below: +8618124018244, contact customer service and send the actual picture

1. Core parameters and functional positioning

*Multi-mode navigation support
Supports BeiDou, Galileo, GLONASS, GPS and GNSS systems, improves positioning accuracy and reliability through multi-constellation signal fusion, and is especially suitable for stable navigation in complex environments.
*High-sensitivity reception
The sensitivity of -167dBm enables it to capture satellite signals in weak signal areas (such as between high-rise buildings in cities and underground parking lots), expanding application scenarios to fields such as IoT tracking and drone control.
*Low power design
Only 23mA current is consumed in the receiving state, and with 2.7V~3.6V wide voltage support, it is suitable for battery-powered devices (such as wearable devices and handheld terminals).
2. Environmental adaptability and integration advantages
*Wide temperature operating range: -40°C to 85°C, covering extreme environmental requirements such as polar scientific research and vehicle navigation.
*Compact packaging: 18-SMD module design, easy to embed in small devices, support surface mount (SMT) technology, and simplify the production process.
3. Interface and protocol compatibility
*Communication interface: supports I²C and UART dual protocols, and can flexibly connect to mainstream main control chips (such as STM32, ESP32).
*Data output: provides NMEA standard sentences, which makes it easy for developers to quickly analyze location, speed, time and other information.
