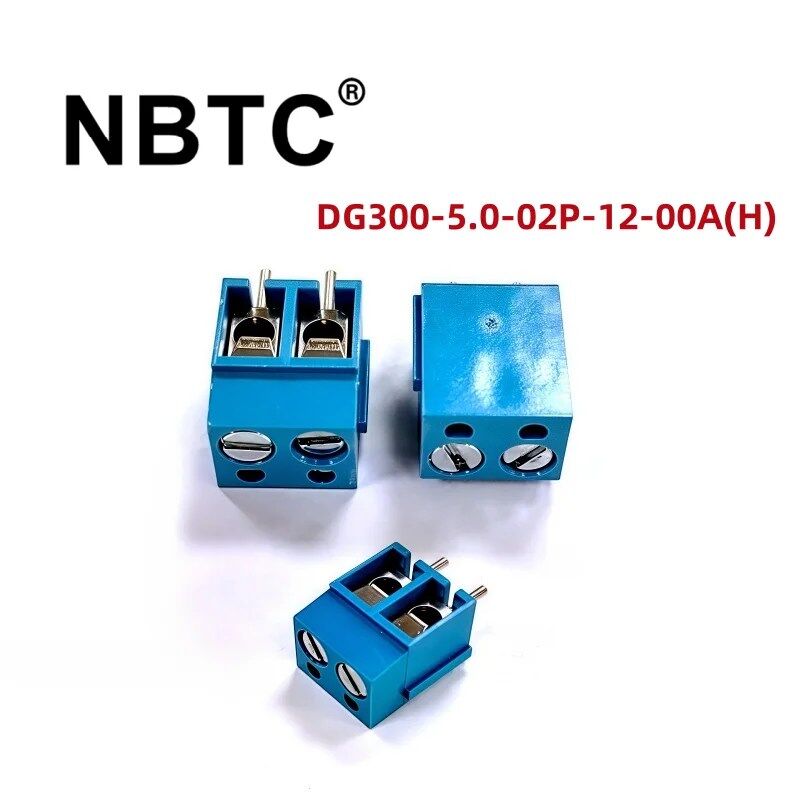

New Original DG300-5.0-02P-12-00A(H) DG300-5.0-02P Series Pluggable terminal blocks 5.0mm Pitch Blue Color 2PIN Straight pin

—DG300-5.0-02P-12-00A(H) Screw terminal block, 2-pin, 5mm, straight

Product Introduction

DG300-5.0-02P-12-00A(H) is a pluggable terminal block produced by DEGSON. It belongs to the field of industrial connectors and is widely used in security equipment, industrial control, power distribution and other scenarios. The following is a detailed introduction of the product:

I. Core parameters and specifications

• 1. Pin pitch: 5.00mm, in line with general industrial standards.
• 2. Structure: 1x2P (1 row of 2 pins), screw fixing design, stable installation.
• 3. Color: blue shell, easy to identify and maintain.
• 4. Installation method: Support THT (through-hole plug-in) technology, some models are bent pin installation, to meet the needs of different circuit board layouts.
• 5. Size: length 10mm, width 10mm, height 7.6mm.
• 6. Rated current: 15A (some models can reach 24A, need to be confirmed according to the specific model).
• 7. Rated voltage: 300V.
• 8. Wire gauge support: compatible with AWG14~22 wire gauge (or equivalent square millimeter wire diameter), suitable for a variety of wire types.
• 9. Contact material: phosphor bronze contact, tin-plated surface, to ensure low contact resistance and high conductivity.
• 10. Working temperature: -20℃ to +120℃, adapt to extreme industrial environments.

2. Application areas

• 1. Security equipment: surveillance cameras, access control systems, alarm devices, etc.
• 2. Industrial control: automation equipment, PLC (programmable logic controller), sensor network.
• 3. Power distribution: power or signal connection between circuit boards, such as power modules, distribution boxes.
• 4. Other scenarios: mechanical equipment, instrumentation, communication equipment, etc.
