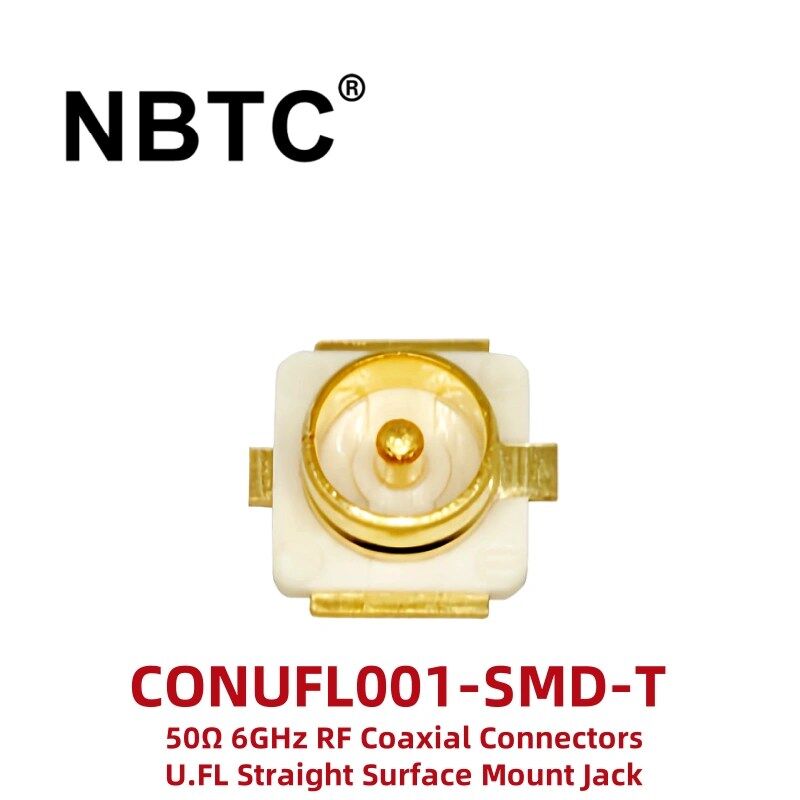

New original CONUFL001-SMD-T 50Ω 6GHz RF Coaxial Connectors U.FL Straight Surface Mount Jack

—U.FL (UMCC) Connector Jack, Male Pin 50 Ohms Surface Mount Solder

CONUFL001-SMD-T is a high-frequency surface mount (SMD) RF coaxial connector designed for scenarios that require compact design and high-reliability signal transmission.

1. Impedance: 50 Ω, matching the characteristics of standard RF transmission lines.
2. Frequency range: supports up to 6 GHz signal transmission, suitable for high-frequency scenarios such as Wi-Fi 6 and 5G modules.
3. Insertion loss: low loss design to ensure signal integrity.
4. Connector type: U.FL (UMCC) male jack (Jack), supports snap-on quick plug-in.
5. Installation method: SMD surface mount, compatible with automated production.
6. Contact material: brass center contact + copper alloy substrate, gold-plated surface, corrosion-resistant and excellent conductivity.
7. Operating temperature: -40°C to 90°C, suitable for harsh industrial environments.
8. High bandwidth adaptation: supports 6 GHz bandwidth, suitable for future wireless communication upgrades.
9. Compact design: saves PCB space and is suitable for miniaturized devices.
10. Durability: supports multiple plug-in and unplug cycles and has a long life.

Typical application scenarios
1. Wireless communication modules: Wi-Fi, Bluetooth, Zigbee modules.
2. IoT devices: sensors, gateways, smart homes.
3. Medical equipment: portable blood glucose meters, remote monitoring equipment.
4. Automotive electronics: vehicle-mounted cameras, V2X communication modules.
5. Test and measurement: high-frequency signal generator, spectrum analyzer.
