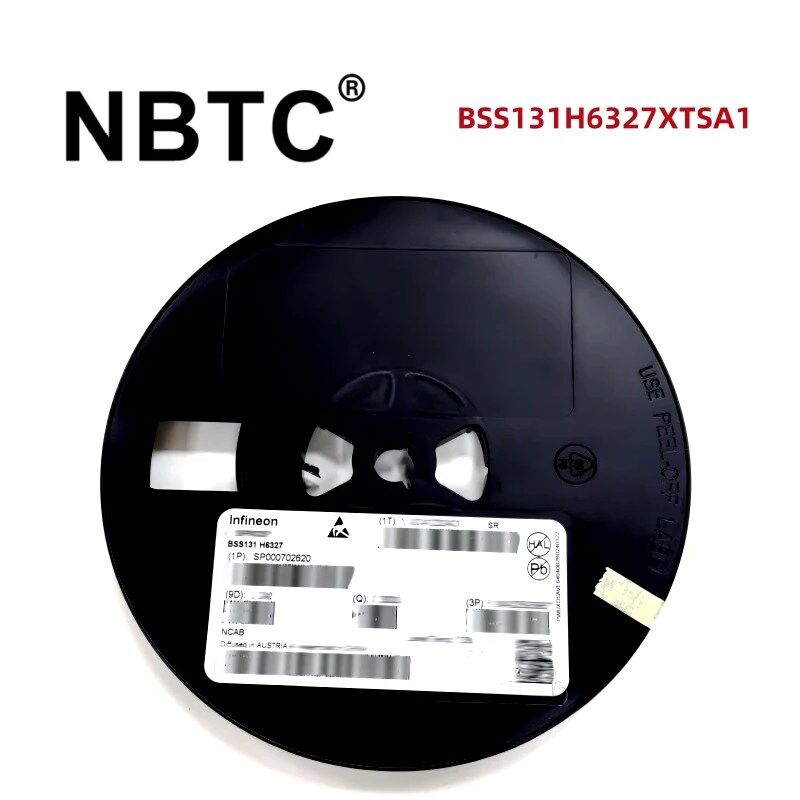

New Original Stock Mos BSS131 H6327 Series BSS131H6327XTSA1 SP000702620 MOSFET N-Channel 240 V 110mA (Ta) 360mW (Ta) Surface Mount PG-SOT23 for Power Management
BSS131H6327XTSA1 is an N-channel enhancement-mode power MOSFET produced by Infineon. It adopts SOT-23-3 package and is designed for high voltage and low current applications. Its core advantages are high voltage tolerance, low on-resistance and fast switching characteristics. It is widely used in power management, motor drive, battery management system (BMS) and other fields.
Parameters
Value
Description
Drain-source voltage (Vds)
240V
Maximum drain-source voltage, suitable for high-voltage scenarios.
Continuous drain current (Id)
110mA (@ Vgs=10V)
Maximum continuous operating current, suitable for low power requirements.
On-resistance (Rds(on))
7.7Ω (@ 10V)
Low conduction losses, improving system energy efficiency.
Gate-source voltage (Vgs)
±20V
Gate drive voltage range, ensuring stable device operation.
Gate-source threshold voltage (Vgs th)
1.4V
Minimum gate voltage at which the device starts to conduct.
Maximum power dissipation (Pd)
360mW (@ 25°C)
Power handling capability, suitable for low-load applications.
Operating temperature range
-55°C ~ +150°C
Adapt to extreme environments such as industrial or automotive electronics.
Package
SOT-23-3
Surface mount packaging, suitable for high-density circuit board design.
Core advantages
1. Low on-resistance (7.7Ω) reduces conduction loss and improves power conversion efficiency. 2. Fast switching speed reduces switching loss and is suitable for high-frequency applications (such as switching power supplies). High reliability: 3. High voltage tolerance (240V) enhances the device’s shock resistance. 4. Wide temperature range (-55°C to +150°C) adapts to harsh environments. Design flexibility: 5. Supports low current (110mA) and high voltage (240V), covering a variety of application scenarios. 6. SOT-23-3 package is convenient for automated mounting and saves circuit board space.
Typical application scenarios 1. Power management: Switching power supply (SMPS), DC-DC converter (such as buck/boost circuit). Battery management system (BMS), control charging/discharging current. 2. Motor control: DC motor (DCM), stepper motor drive, to achieve precise speed and direction control. Electric vehicle power control module (PCM), photovoltaic inverter. 3. Industrial and automotive electronics: Power amplification and control in power tools and industrial automation equipment. LED drive circuit, stable current regulation to control brightness.
WhatsApp: +8618124018244(Click)
New Original Stock Mos BSS131 H6327 Series BSS131H6327XTSA1 SP000702620 MOSFET N-Channel 240 V 110mA (Ta) 360mW (Ta) Surface Mount PG-SOT23 for Power Management
Mosfet BSS131H6327XTSA1：Order today, Ships today. MOSFET N-CH 240V 110MA SOT23-3
I. Product Overview
BSS131H6327XTSA1 is an N-channel enhancement-mode power MOSFET produced by Infineon. It adopts SOT-23-3 package and is designed for high voltage and low current applications. Its core advantages are high voltage tolerance, low on-resistance and fast switching characteristics. It is widely used in power management, motor drive, battery management system (BMS) and other fields.
Core advantages
1. Low on-resistance (7.7Ω) reduces conduction loss and improves power conversion efficiency.
2. Fast switching speed reduces switching loss and is suitable for high-frequency applications (such as switching power supplies).
High reliability:
3. High voltage tolerance (240V) enhances the device’s shock resistance.
4. Wide temperature range (-55°C to +150°C) adapts to harsh environments.
Design flexibility:
5. Supports low current (110mA) and high voltage (240V), covering a variety of application scenarios.
6. SOT-23-3 package is convenient for automated mounting and saves circuit board space.
Typical application scenarios
1. Power management:
Switching power supply (SMPS), DC-DC converter (such as buck/boost circuit).
Battery management system (BMS), control charging/discharging current.
2. Motor control:
DC motor (DCM), stepper motor drive, to achieve precise speed and direction control.
Electric vehicle power control module (PCM), photovoltaic inverter.
3. Industrial and automotive electronics:
Power amplification and control in power tools and industrial automation equipment.
LED drive circuit, stable current regulation to control brightness.
