描述

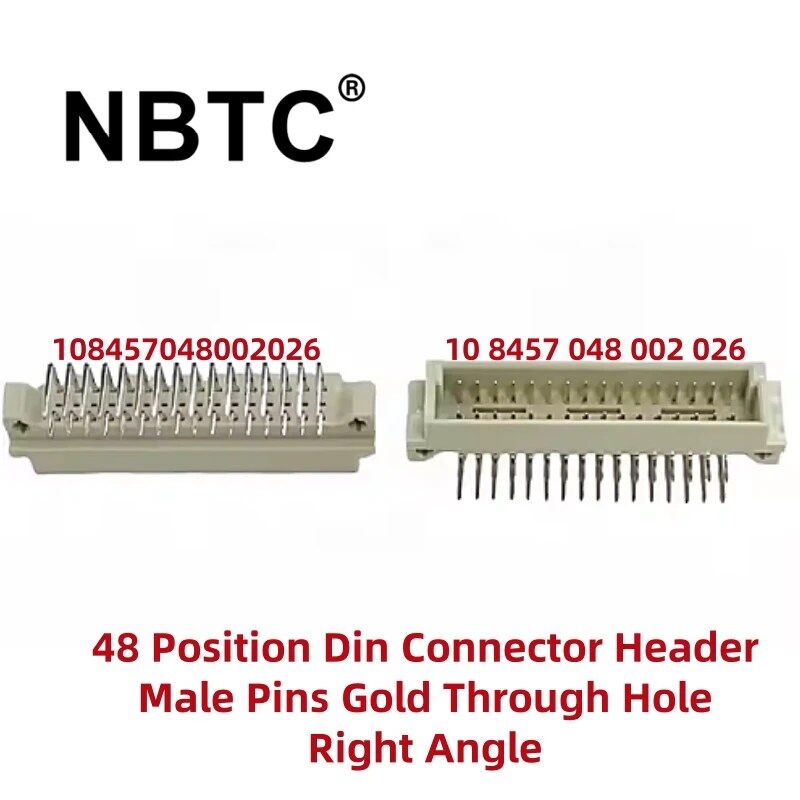

10 8457 048 002 026 108457048002026 backplane connector Right Angle 48 Position DIN 41612 32P STYLE 1/2 C MALE A+C FULLY LOADED New Original
| Connector Type | Header, Male Pins |
| Number of Positions | 48 |
| Number of Positions Loaded | 32 |
| Pitch | 0.100″ (2.54mm) |
| Number of Rows | 3 |
| Style | C/2 (1/2 C) |
| Level, Class | 2 |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Features | – |
| Contact Finish | Gold |
| Contact Finish Thickness | – |
| Operating Temperature | -65C ~ 125C |
| Current Rating (Amps) | 3A |
| Material Flammability Rating | UL94 V-0 |
| Material – Insulation | Polyester Thermoplastic, Glass Filled |
