New 12V 350W LRS-350-12 Switching Power Supply PSU Enclosed AC DC Converters 1 Output 12V 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC Input for NerdOctaxe 10T(8PCS BM1370)

The LRS-350-12 switching power supply is an industrial-grade power supply in the LRS series:

Core Parameters
1. Model: LRS-350-12
2. Power: 350W (output power 348W)
3. Output voltage: 12V DC
4. Output current: 29A (maximum)
Input voltage:
1. AC 85-132V (115V mode)
2. AC 180-264V (230V mode)
3. DC 120-370V
4. Efficiency: ≥89% (at full load)

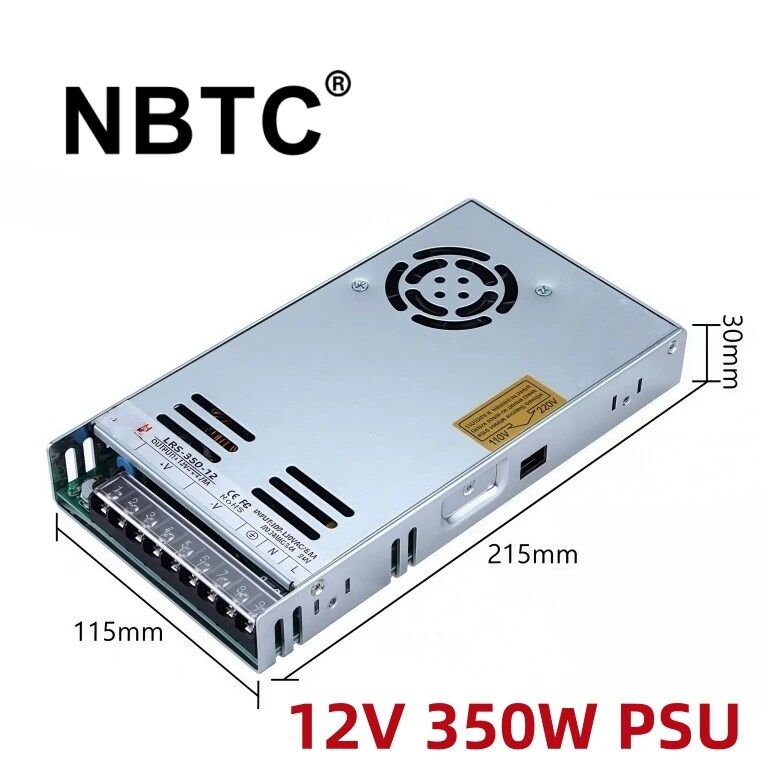

5. Dimensions: 215 × 115 × 30mm (ultra-thin design)
6. Weight: Approximately 0.76kg
7. Protections: Short circuit, overload, overvoltage, and overtemperature
8. Certifications: UL62368-1, EN61558-1, CE, EAC, ROHS, etc.

Features

1. Wide Operating Temperature Range: Supports ambient temperatures from -25°C to +70°C, suitable for harsh industrial environments.
2. Efficient Heat Dissipation: A built-in long-life fan and forced air cooling ensure long-term stable operation.
3. Voltage Regulation: The output voltage is adjustable from 10.2V to 13.8V to meet different load requirements.
4. Safety Design: The aluminum housing is anodized for corrosion and rust resistance, meeting IP21 protection.
5. Global Compatibility: Supports 115V/230V input switching to adapt to different regional power grids.

Application Scenarios
1. Industrial Automation: Powers PLC control systems, sensors, and actuators.
2. Communications Equipment: Powers routers, switches, base stations, and other equipment.
3. Medical Equipment: Powers precision equipment such as monitors, imaging equipment, and laboratory instruments.
4. Security Systems: Surveillance cameras, access control systems, alarm systems, and more.
5. LED Lighting: Efficient power conversion for LED lamps, displays, and other applications. 6. Mechanical equipment: various industrial equipment, motor drives, etc.
