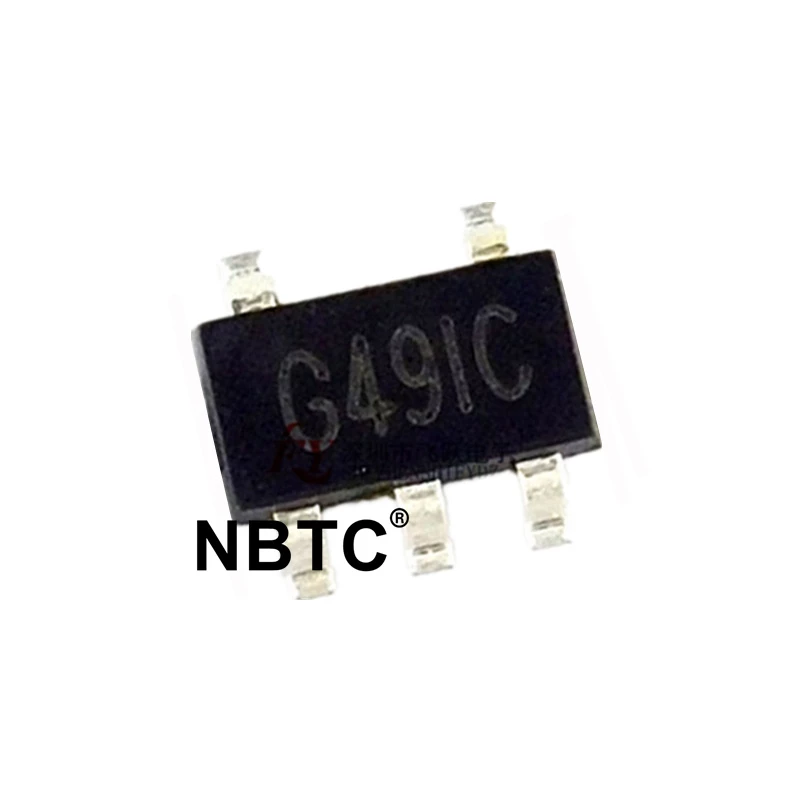

SGM2202-1.8YN5G /TR G49XX G49HH G49IC SOT-23-5 1.8V LDO HJ Voltage Domain Chip IC for S9 l3+ hashboard
SGM2202 (G49IC) series is a set of low power high voltage regulators implemented in CMOS technology which can provide 150mA output current.
The device allows input voltage as high as 36V. The SGM2202 series is available in adjustable and several fixed output voltages. CMOS technology ensures low dropout voltage and low quiescent current. Although designed primarily as fixed voltage regulators, the device can be used with external components to obtain variable output voltages. The SGM2202 series is available in Green SOT-23-5 and SOT-23-6 packages. It operates over an ambient temperature range of -40℃ to +85℃.
1. Low Power Consumption
2. 150mA Nominal Output Current
3. Low Dropout Voltage
4. High PSRR
5. Low Temperature Coefficient
6. High Input Voltage (Up to 36V)
7. Output Voltage Accuracy: ±2.5%
8. Fixed Output Voltage Versions:
0.8V to 4.7V with 0.1V per Step
5V to 12V with 0.25V per Step
9. Adjustable Output Voltages: 0.8V to 13.2V
10. -40℃ to +85℃ Operating Temperature Range
11. Available in Green SOT-23-5 and SOT-23-6 Packages
1. Battery-Powered Equipment
2. Communication Equipment
3. Audio/Video Equipment
1. We can buy other electronic accessories and IC accessories for you. You can tell us the product name and quantity you need,
2. We have a lot of parts, but not all of them are uploaded. If you don’t find the model you need, you can contact us and tell me the parts and quantity you need.
3. Avoid damage or loss during transmission, please check carefully when you receive the parts. Please contact me immediately with any questions. Let’s work together to solve this problem quickly!
