B0540W Diode

$0.20

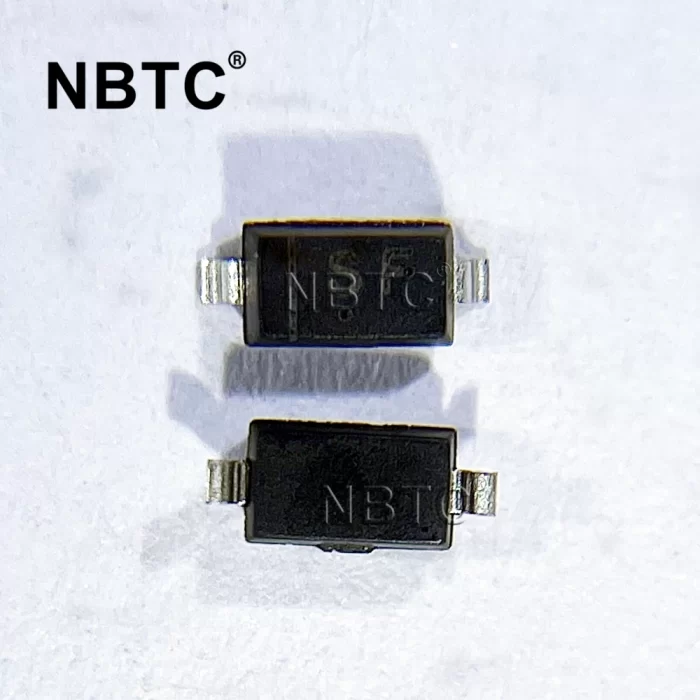

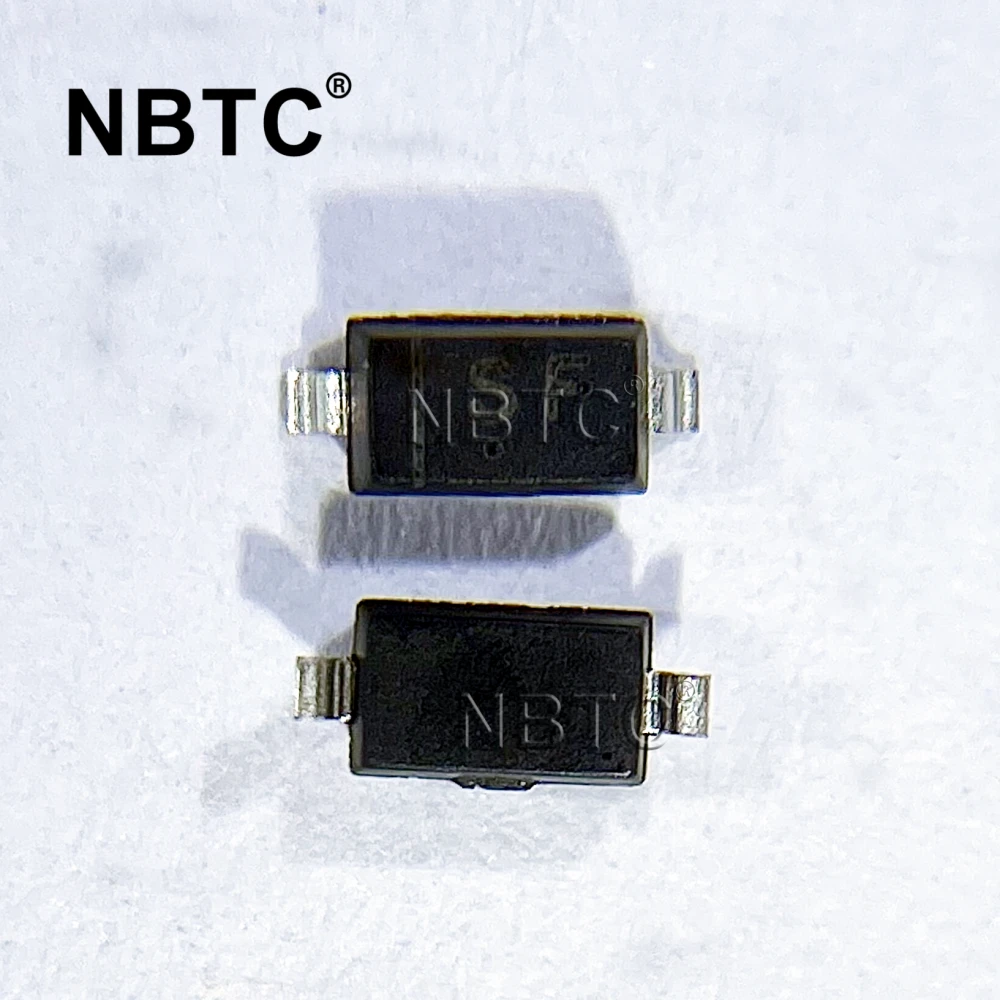

B0540W Marking SF

  • Shipping Date: Shipping out within 3 days after full payment.
  • Payment Method: Wire Transfer | BTC | USDT(ERC20/TRC20)

Support Bulk Order and Other parts Quotation

 WhatsApp: +8618124018244

数量 优惠 (%) 价格
1 - 2,999 $0.20
3,000+ 50 % $0.10
SKU: B0540W SF B0540W-7-F Schottky Diode 0.5A 40V SOD-123 Categories: , Tags: , ,

Description

B0540W SF B0540W-7-F Schottky Diode 0.5A 40V SOD-123

B0540W SF Info:

SF B0540W Features:

1. Low Forward Voltage Drop
2. Guard Ring Construction for Transient Protection
3. High Conductance
4. Totally Lead-Free & Fully RoHS Compliant
5. Halogen and Antimony Free. “Green” Device
6. This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability.
7. An Automotive-Compliant Part is Available Under Separate
8. Working peak reverse voltage: 40V
9. DC blocking voltage: 40V
10. RMS reverse voltage: 28V
11. Average rectified output current (@TL= 100°C): 0.5A
12. Operating and storage temperature Range: -65 °C to +125 °C

SF B0540W Mechanical Data:

1. Package: SOD123
2. Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
3. Moisture Sensitivity: Level 1 per J-STD-020
4. Lead Free Plating (Matte Tin Finish Annealed over Alloy 42 Leadframe) Solderable per MIL-STD-202, Method 208
5. Polarity: Cathode Band
6. Weight: 0.01 grams (Approximate)

Product Attribute

Attribute Value

Product: Schottky Diodes
Mounting Style: SMD/SMT
Package / Case: SOD-123-2
Configuration: Single
Technology: Si
If – Forward Current: 500 mA
Vrrm – Repetitive Reverse Voltage: 40 V
Vf – Forward Voltage: 620 mV
Ifsm – Forward Surge Current: 5.5 A
Ir – Reverse Current: 20 uA
Minimum Operating Temperature: – 65 C
Maximum Operating Temperature: + 150 C
Series: B0540
Packaging: Reel
Brand: Diodes Incorporated
Height: 1.25 mm
Length: 2.85 mm
Pd – Power Dissipation: 410 mW
Product Type: Schottky Diodes & Rectifiers
Factory Pack Quantity: 3000
Subcategory: Diodes & Rectifiers
Termination Style: SMD/SMT
Type: Surface Mount Schottky Barrier Diode
Width: 1.7 mm
Unit Weight: 0.000353 oz
