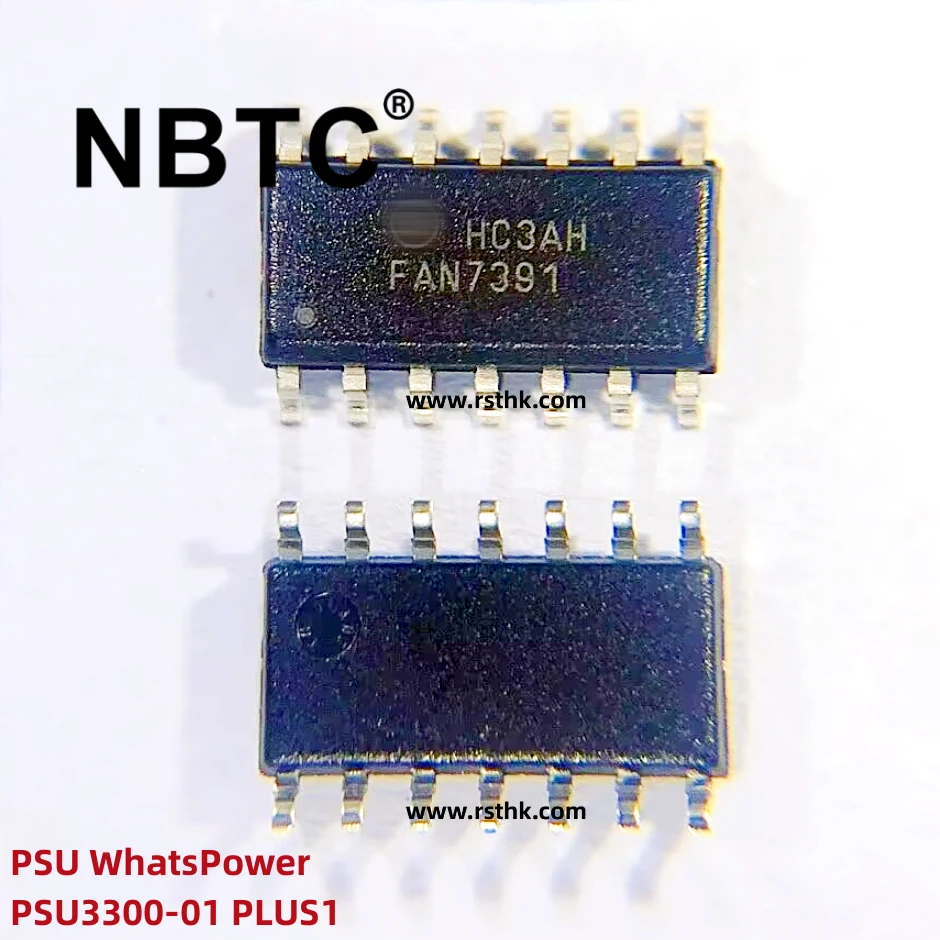

Original FAN7391MX Marking FAN7391 Half-Bridge Gate Driver IC Non-Inverting 14-SOIC for PSU WhatsPower PSU3300-01 PLUS1


The FAN7391 is a monolithic high− and low−side gate−drive IC, which can drive high−speed MOSFETs and IGBTs that operate up to +600 V. It has a buffered output stage with all NMOS transistors designed for high pulse current driving capability and minimum cross-conduction. High−voltage process and common−mode noise−canceling techniques provide stable operation of the high−side driver under high−dv/dt noise circumstances. An advanced level−shift circuit offers high−side gate driver operation up to VS = −9.8 V (typical) for VBS = 15 V. The advanced input filter of HIN provides protection against short−pulsed input signals caused by noise. The UVLO circuit prevents malfunction when VDD and VBS are lower than the specified threshold voltage. The high−current and low−output voltage−drop feature makes this device suitable for the PDP sustainable pulse driver, motor driver, switching mode power supply, and high−power DC−DC converter applications.


• Floating Channels for Bootstrap Operation to +600 V

• Typically 4.5 A / 4.5 A Sourcing / Sinking Current Driving Capability

• Common−Mode dv/dt Noise−Canceling Circuit

• Built-in Under-Voltage Lockout for Both Channels

• Built-in Advanced Input Filter • Matched Propagation Delay for Both Channels

• Logic (VSS) and Power (COM) Ground ±5 V Offset

• 3.3 V and 5 V Input Logic Compatible

• Output In−Phase with Input

• This is a Pb−Free Device



• Plasma Display Panel (PDP) Sustain Driver

• High−Intensity Discharge (HID) Lamp Ballast

• Switching Mode Power Supply (SMPS)

• Motor Driver

Қосымша Ақпарат

Өнім атауы

FAN7391MX Marking FAN7391

Driven Configuration


Арна түрі


Number of Drivers


Voltage - Supply

10V ~ 20V

Logic Voltage - VIL, VIH

1.2V, 2.5V

Current - Peak Output (Source, Sink)

4.5A, 4.5A

Input Type


High Side Voltage - Max (Bootstrap)


Жұмыс температурасы

-40°C ~ 150°C (TJ)

Rise / Fall Time (Typ)

25ns, 20ns


14-SOIC (0.154", 3.90mm Width)
