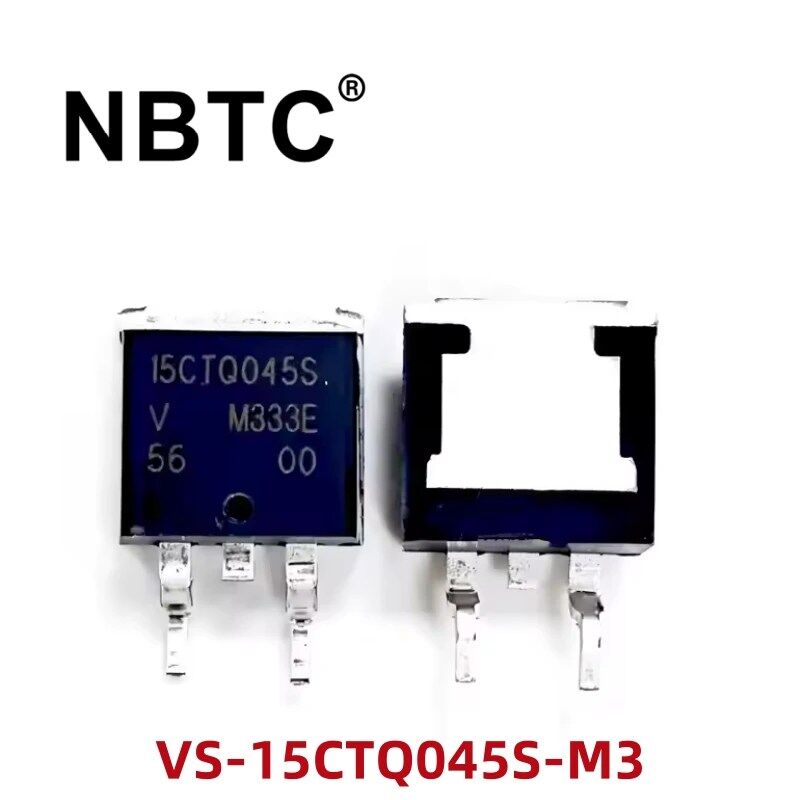

Original VS-15CTQ045S-M3 45V 7.5A High Frequency Low Noise Schottky Diode 15CTQ045S-M3 45V 7.5A TO-263AB

—Diode Array 1 Pair Common Cathode 45 V 7.5A Surface Mount TO-263-3, D2PAK (2 Leads + Tab), TO-263AB

Өнім Сипаттамасы

1. Product Overview
VS-15CTQ045S-M3 is a high-performance Schottky diode launched by Vishay, designed for high-frequency, low-noise power management applications. This product uses TO-263AB (D²PAK) package, with high current handling capability, low forward voltage drop and high reliability, suitable for switching power supplies, inverters, RF circuits and industrial power supplies.

2. Core parameters

Voltage level: 45V
Rated current: 7.5A (average rectified current)
Forward voltage drop (Vf): 550mV– 7.5A
Reverse current (Ir): 800μA — 45V
Package type: TO-263AB (D²PAK, surface mount)
Operating temperature range: -55°C ~ 150°C (junction temperature)
Features: Fast recovery (<500ns)
Ерекшеліктер
1. High frequency and low noise: suitable for high-frequency switching power supplies and RF circuits to reduce signal interference.
2. High efficiency: Low forward voltage drop (550mV–7.5A) reduces power loss and improves energy efficiency.
3. High reliability: High temperature operating range (-55°C~150°C) adapts to harsh industrial environments.
4. Compact package: TO-263AB package is compatible with automated patch and optimizes PCB layout.
5. Fast recovery characteristics: short reverse recovery time (<500ns), supporting high-frequency switching operation.

Қолданбалар
1. Power management: switching power supply (SMPS), DC-DC converter, inverter. Industrial power supply, charging pile, LED driver power supply.
2. RF circuit: RF amplifier, mixer, microwave communication module.
3. Automotive electronics: vehicle power system, on-board charger, engine control unit.
4. Consumer electronics: adapter, TV power supply, display backlight driver.
