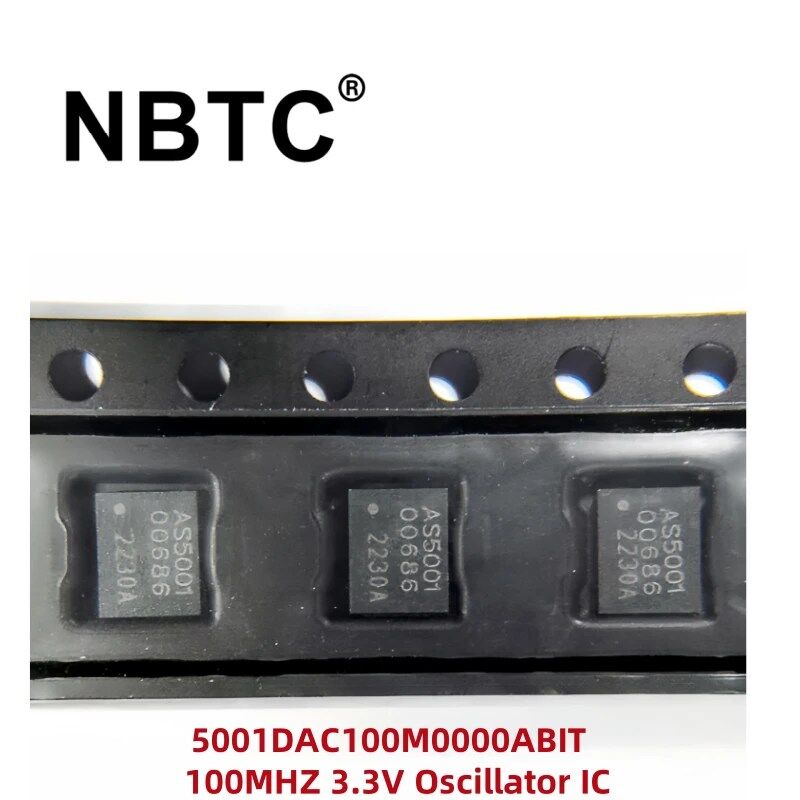

New Original AS5001 Series 5001DAC100M0000ABIT XLL Series 4 X 3.2 mm 100 MHz 3.3 V ±25 PPM -40 to +85°C XO LVDS Oscillator IC
Өнім Сипаттамасы
The AS5001 all-silicon oscillator uses proprietary frequency synthesis and sensor technology to provide a quartz-free, MEMS-free, low-jitter clock at any output frequency. The device is factory programmed to provide an output frequency range of 10 kHz to 350 MHz with a resolution of less than 0.026 ppb and maintain low jitter over the entire operating range.
The AS5001 uses on-chip temperature and strain sensors and an advanced LC resonant structure to achieve excellent reliability even in high-shock scenarios. The AS5001’s on-chip power supply filtering provides industry-leading power supply noise rejection, simplifying the task of generating low-jitter clocks in noisy systems using switching power supplies.
Ерекшеліктер
- Quartz and MEMS free, no mechanical moving parts
- Flexible output frequency and format;
- Differential: 10 kHz to 350 MHz
- CMOS: 10 kHz to 212.5 MHz
- LVPECL, LVDS, CML, HCSL, CMOS or Dual CMOS output options
- Low jitter: 350 fs typical RMS (12 kHz – 20 MHz)
- Meets PCIe Gen 1/2/3/4/5/6 jitter requirements
- Temperature stability:
– ± 12 ppm (0 to 70 oC)
– ± 20 ppm (-20 to 85 oC)
– ± 35 ppm (-40 to 85 oC)
– ± 35 ppm (-40 to 105 oC) - Integrated LDO for on-chip power supply noise filtering
- Supports 1.8V, 2.5V, 3.3V VDD supply operation
- Industry standard 3225 and 5032 package sizes
Қолданбалар
- 1G/10G/40G/100G/200G Ethernet
- Servers, switches, storage, NICs, search acceleration
- Test and measurement
- Clock and data recovery
- FPGA/ASIC clocking
